Buildings with Optimized Structures

The exterior cladding of the building consists of sandwich panels for roofing and walls.

The lightweight structures are steel structures composed of Z-profiles, the type of which is determined by the width of the building:

width up to 8 m: profile height 200mm
width up to 12 m: profile height 220 mm (*)
width up to 15 m: profile height 250 mm (*)
width > 15 m: profile height 300 mm (*)

(*) for widths >10 m, cables with tensioners must be used to stabilize the structure.

Download the brochure

Articles

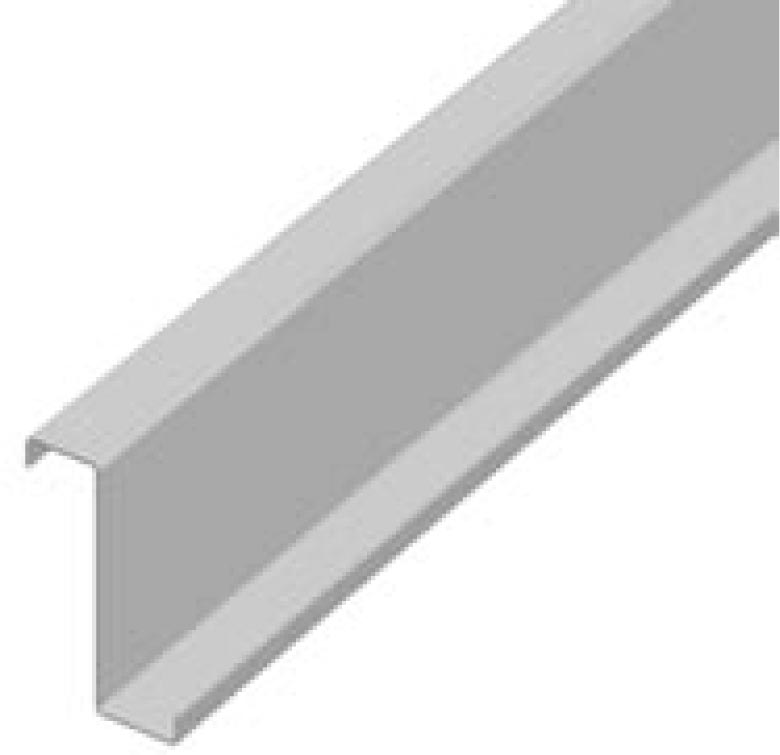

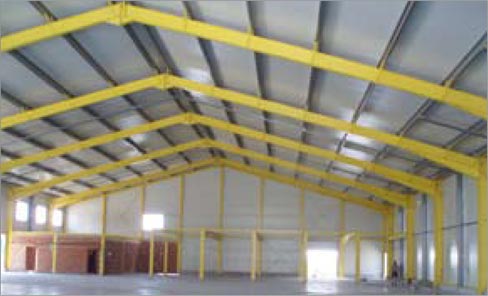

Z - PROFILE

APPLICATION

The Z-profiles are ideal and solid support for a range of walls and roofs in the building industry.

They settle easily on the frame and guarantee a well balanced fixation.

The Z-profile is a galvanized profile formed in cold, which replaces easily the wood or the flattened profile.

STANDARD EXECUTION

Cold formed profile in Z shape in flat wall at right angles to each others.
Galvanized steel according to EN10346

Height : 140 mm to 300 mm
Thickness steel sheet : 1.50 mm, 2.00 mm, 2.50 mm
Length : until 12000 mm
Length leaky and drilled at your needs
Perforation : Ø 14 mm, 16 mm or 18 mm

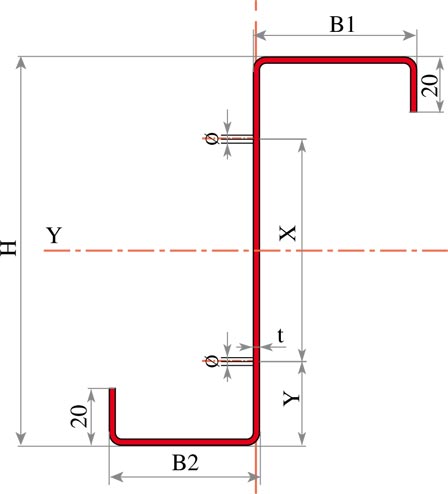

SIZES

Type	H(mm)	B1(mm)	B2(mm)	t(mm)	X(mm)	Y(mm)	Dev.
Z140	140	65	60	1.50 / 2.50	50	45	285
Z160	160	65	60	1.50 / 2.50	70	45	305
Z180	180	65	60	1.50 / 2.50	80	50	325
Z200	200	65	60	1.50 / 2.50	100	50	345
Z220	220	65	60	1.50 / 2.50	120	50	365
Z250	250	79	68	2.00 / 2.50	150	52	417
Z300	300	95	85	2.00 / 2.50	190	56	500

An economical solution

The Z-profiles can be used as purlins of roof and ribbands of bardage. In comparaison with hot-rolled profiles, the use of the purlins or ribbands in Z-profile allows a weight reduction until 50 %.

The minimized weight allows an easy manipulation.

	Z Profile	I Profile
Weight (daN/m²)	3,50 to 8,00	> 7
Reache by profile max (m)	12 m	> 10 m
Finishing	galvanized	to treat
Fixation	bolted	Soldered or bolted
Production	Custom made and perforated	To saw and to perforate
Length (m)	12 m and more	12 m
Handling	light	heavy

ADVANTAGES

We propose a complete range of Z -profiles for reaches going to 12 meters. These profiles adapt to all the constructions.
Our wide range of Z-profiles allows the manufacturers to realize projects in a fast and economic way.
The volume of the parcel and transport costs are reduced by the shape and the fitting of the Z-profiles which results in a big ease and speed in the unloading and the assembly on construction site.

BOARD OF EQUIVALENCE IPE AND Z-PROFILE

IPE Type	Weight (kg/ml)	Z Type	Thickness (mm)	Weight (Kg/ml)	Weight gain
IPE80	6.00	Z140	1.50	3.36	44%
		Z140	2.00	4.48	25%
		Z160	1.50	3.60	40%
IPE100	8.10	Z160	2.50	5.98	26%
		Z180	2.00	5.10	37%
		Z220	1.50	4.31	47%
IPE120	10.40	Z220	2.50	7.15	31%
IPE120	10.40	Z250	2.00	6.55	37%
IPE140	12.90	Z250	2.00	8.17	37%
IPE140	12.90	Z300	2.00	7.85	39%

Caractéristiques techniques

OPTIMIZED STRUCTURE IN Z - PROFILES
DESCRIPTION

The steel structures completly galvanized are made from Z-profiles.

Components are light and easy to assemble which allow to build optimized structures.

The construction of offices, houses, bases of lives, farm buildings can so be made in a fast and effective way.

STANDARD EXECUTION

WIDTH HEIGHT LENGTH

8 m
12 m
15 m
>15 m (on request) 2,5 m
3 m
4 m
12 m 18 m 24 m 30 m

36 m 42 m 48 m 54 m

60 m 66 m 72 m 78 m

84 m 90 m 96 m 102 m

ADVANTAGES
- Completely galvanized structure,
- Light construction, which excludes the difficult assemblies,
- Free choice of widths and lengths,
- Fast assembly, thanks to a set to be screwed,
- The composition of the profile offers excellent possibilities for the electric and sanitary installation,
- Free volume with excellent assets for the inside finishing.
COMPOSITION OF COMPLETE STRUCTURE

Galvanized steel structure consisted of Z-profiles which type is determined by the width of the building :
- Width until 8 m : Z200
- Width until 12m : Z220
- Width until 15m : Z250
- Superior width in 15m : Z300
The structure consists of :

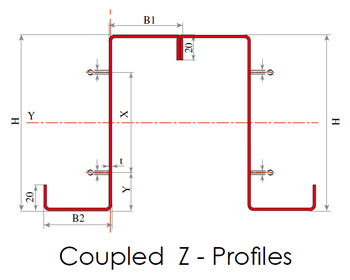

- Posts and farms constituted by 2 coupled Z-profiles
- Purlins of roof and ribbands of bardage in Z- profiles
- Accessories
- Parts of welded mechanic ties
- Bolts of HR galvanized fixation
- Cables with carrier straps for the structures of superior width in 10 m.
- Custom-made opening

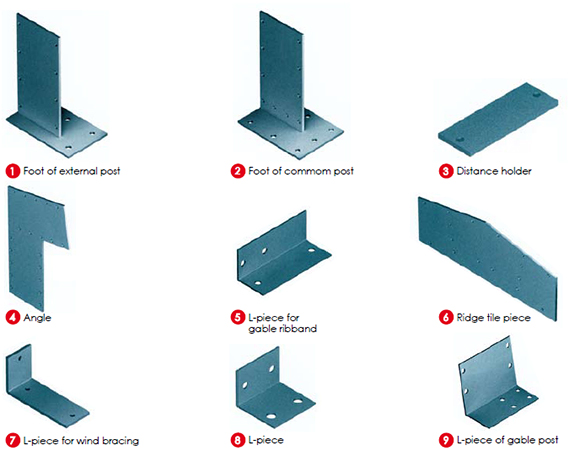

Z - STRUCTURE ASSEMBLY PIECES

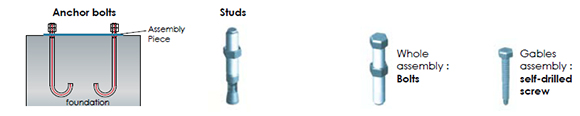

ASSEMBLY PIECES

WIND BRACING

The stability of the structure is assured by wind bracing, galvanized steel cables 6 mm in diameter.

Cables avoid the arrow according to the slope of the building in roof, in smoothing.

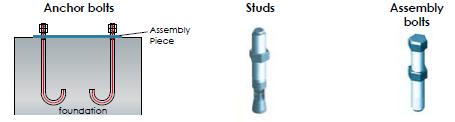

FIXATION

Fixation of the structure on the foundation by :

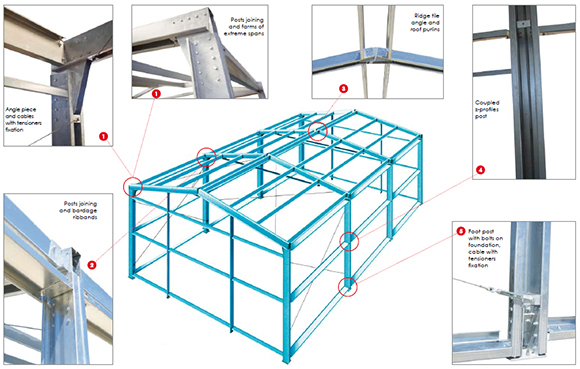

ASSEMBLY PIECES DETAILS

WIDTH	HEIGHT	LENGTH
8 m 12 m 15 m >15 m (on request)	2,5 m 3 m 4 m	12 m	18 m	24 m	30 m
36 m	42 m	48 m	54 m
60 m	66 m	72 m	78 m
84 m	90 m	96 m	102 m

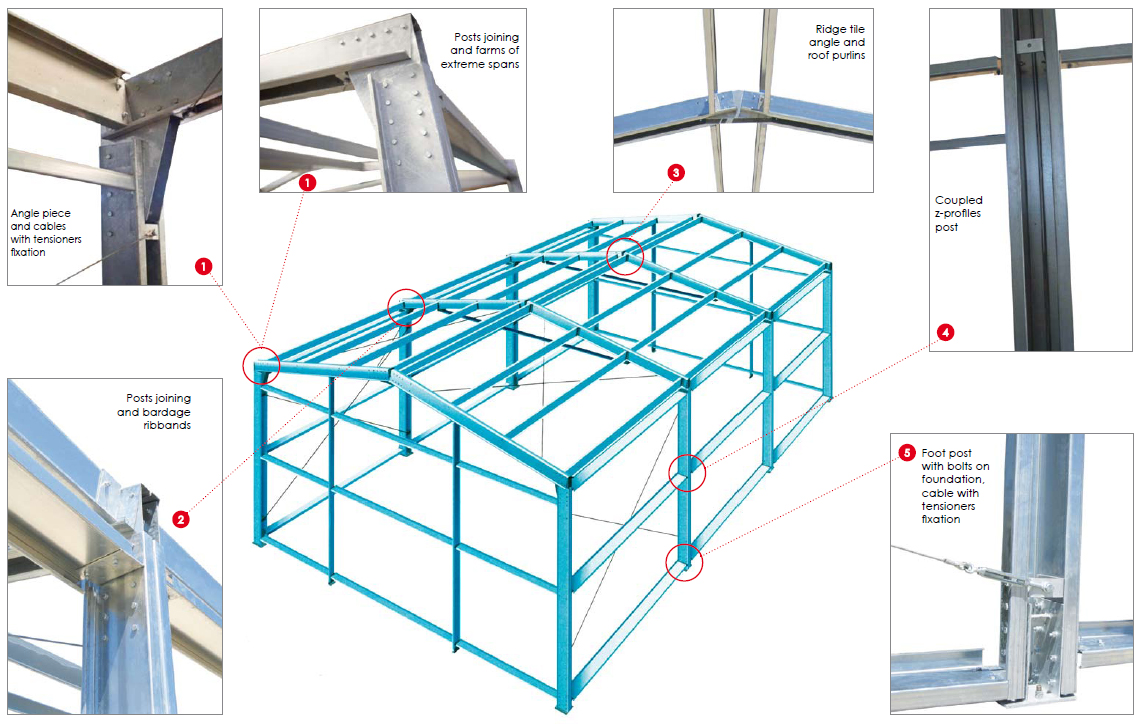

Z-STRUCTURE ASSEMBLY

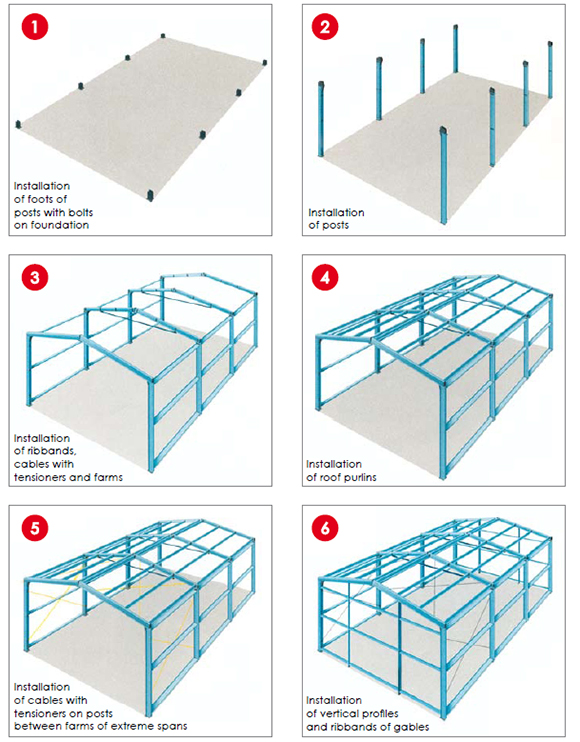

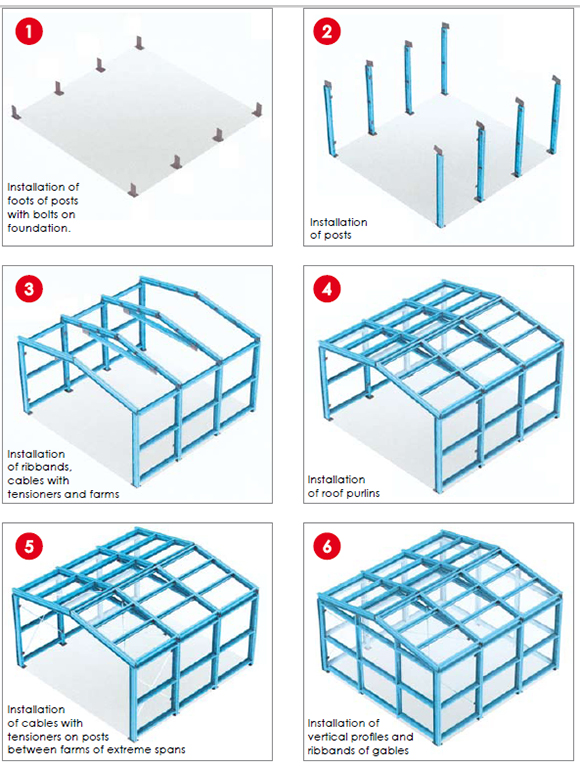

A RAPID ASSEMBLY ON 6 STEPS

Montage structure-Z

AN ECONOMICAL SOLUTION

The Σ-profiles can be used as purlins of roof and ribbands of bardage. In comparaison with hot-rolled profiles, the use of the purlins or ribbands in Σ-profile allows a weight reduction until 50 %.

The minimized weight allows an easy manipulation.

LARGEURS	Σ - Profile	I - Profile
Weight (daN/m²)	3,50 to 7,50	> 7
Reache by profile max (m)	12 m	> 10 m
Finishing	galvanized	to treat
Fixation	bolted	soldered and bolted
Production	Custom made and perforated	to saw and perforate
Length (m)	12 m and more	12 m
Handling	light	heavy

ADVANTAGES

The Σ- profiles are made from strip of galvanized steel under heat and fit for forming. They are produced by cold forming on a profiling modern line with high quality steels.
We propose a complete range of Σ-profiles for reaches going to 12 meters. These profiles adapt to all the constructions.
Our wide range of Σ-profiles allows the manufacturers to realize projects in a fast and economic way.
The volume of the parcel and transport costs are reduced by the shape and the fitting of the Σ-profiles which results in a big ease and speed in the unloading and the assembly on construction site.

BOARD OF EQUIVALENCE IPE AND Σ-PROFILE

Type IPE	Weight (kg/ml)	Σ purlin	Thickness (mm)	Weight (Kg/ml)	Weight gain
IPE80 IPE100	6.00 8.10	Σ160	1.50	3.65	39%
		Σ160	2.50	6.08	25%
		Σ180	2.00	5.18	36%
IPE120	10.40	Σ220	1.50	4.36	47%
IPE120	10.40	Σ220	2.50	7.26	30%

Σ- PROFILE

APPLICATION

The Σ-profiles are ideal and solid support for a range of walls and roofs in the building industry.

They settle easily on the frame and guarantee a well balanced fixation.

The Σ-profile is a galvanised profile formed in cold, which replaces easily the wood or the flattened profile.

STANDARD EXECUTION

Galvanized steel according to EN10346 Σ 160, Σ 180, Σ 200, Σ 220
Thickness steel sheet : 1.50 mm, 2.00 mm, 2.50 mm
Length until 12000 mm
Width of wings : 60mm
Length leaky and drilled at your needs

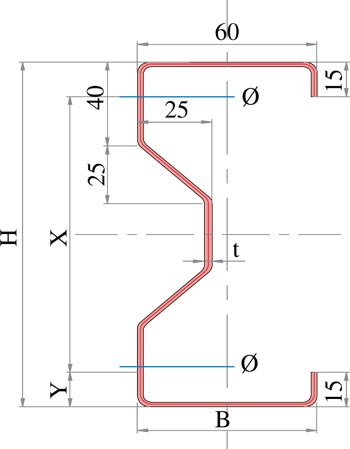

SIZES

Type	H(mm)	B1(mm)	t (mm)	X (mm)	Y(mm)	Dev.
Σ160	160	60	1.50 / 2.50	120	20	310
Σ180	180	60	1.50 / 2.50	140	20	330
Σ200	200	60	1.50 / 2.50	160	20	350
Σ220	220	60	1.50 / 2.50	180	20	370

PROFIL - Σ

The best ratio weight / mechanical strength The double return increases the rigidity of the profile and improves the mechanical characteristics

Caractéristiques techniques

OPTIMIZED STRUCTURE IN Σ-PROFILES
DESCRIPTION

The steel structures completly galvanized are made from Σ-profiles.

Components are light and easy to assemble which allow to build optimized structures.

The construction of offices, houses, bases of lives, farm buildings can so be made in a fast and effective way.

STANDARD EXECUTION

WIDTH HEIGHT LENGTH

8 m
12 m 2,5 m
3 m
4 m 12 m 18 m 24 m 30 m

36 m 42 m 48 m 54 m

60 m 66 m 72 m 78 m

84 m 90 m 96 m 102 m

ADVANTAGES
- Completely galvanized structure,
- Light construction, which excludes the difficult assemblies,
- Free choice of widths and lengths,
- Fast assembly, thanks to a set to be screwed,
- The composition of the profile offers excellent possibilities for the electric and sanitary installation,
- Free volume with excellent assets for the finish inside.
COMPOSITION OF COMPLETE STRUCTURE

Galvanized steel structure consisted of Σ-profiles which type is determined by the width of the building :
- Width until 8 m : Σ 200
- Width until 12 m : Σ 220
The structure consists of :
- Posts and farms constituted by 2 coupled Σ-profiles
- Purlins of roof and ribbands of bardage in Σ- profiles
- Accessories :
- Parts of welded mechanic ties
- Bolts of HR galvanized fixation
- Cables with carrier straps for the structures of superior width in 10m.
- Custom-made opening
Σ-STRUCTURE ASSEMBLY PIECES

ASSEMBLY PIECES

WIND BRACING

The stability of the structure is assured by wind bracings, galvanized steel cables 6 mm in diameter.

Cables avoid the arrow according to the slope of the building in roof, in smoothing.

FIXATION

Fixation of the structure on the foundation by :
Σ-STRUCTURE ASSEMBLY

A RAPID ASSEMBLY ON 6 STEPS
COMPLETE BUILDING KIT

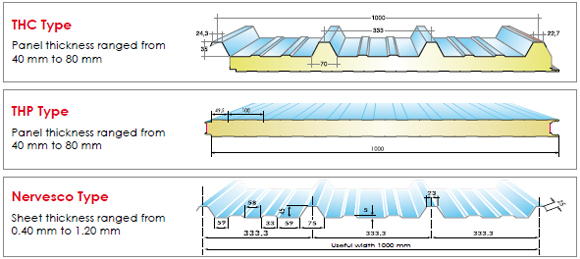

COVERING AND CLADDING TYPES
- Sandwich panels (consult our range)
- Profile cladding sheets (consult our NERVESCO range)
COMPLETE BUILDING KIT

The complete building kit consists of :
- Steel complete structure (purlins, ribbands, farms, posts and all accessories)
- Cables with tensioners to stabilize the steel structure and avoid the deformation
- Coating of covering and cladding in sandwich panels THC and THP types.
- Notched ridge tiles, under ridge tiles
- Finishes (lips, angles,…)
- Opening (service doors, sliding door, sectional doors, metal curtains,…)
- Accessories and bolts.
PURLINS OF LONG REACHES

The projects of buildings can be optimized by using of more long-range of purlins. We propose a range of Z and Σ-profiles used in buildings with reaches going until 12 m for optimized and economic solutions :
- less intermediate posts in buildings,
- less assembly.

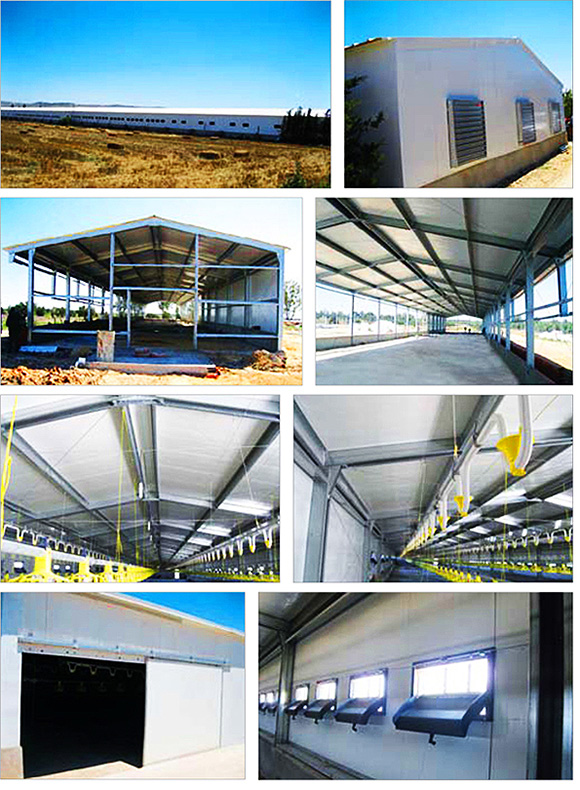

REALISATIONS
