Refrigerating doors

Our refrigerated gates organize insulating performance and durability. They are attractive and require little maintenance. Available in several thicknesses, they offer ametal cover of high quality. The panels are isolated in the rigid foam of polyurethan. The hardware is designed to support an extensive usage, offering security and reliability.

Our refrigerated gates are convenient for rooms and cold storage plants, refrigerators and deep freezes, both for the applications internal and outside. They are ideal for fields of application such as:

Cold storage plant
Stores of distribution
Supermarkets
Restaurants

Articles

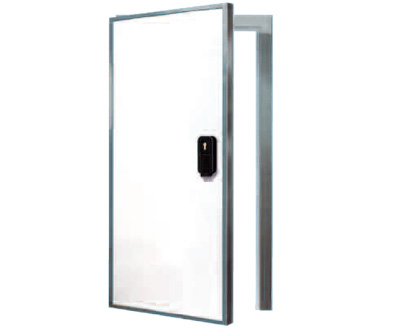

HINGED DOORS-Mod. 500 TN

Caractéristiques techniques

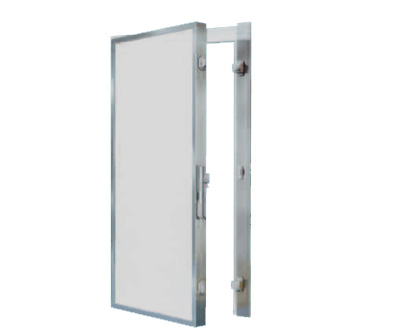

HINGED DOORS-Mod. 603 LW T

Caractéristiques techniques
HINGED DOORS-Mod. 740LWT

Caractéristiques techniques

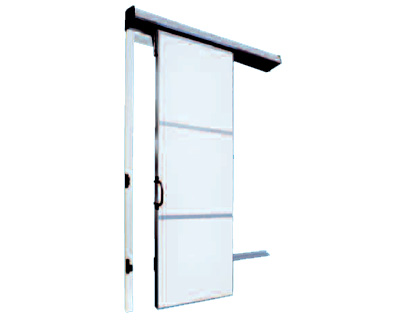

Sliding doors-Mod. 480S

Caractéristiques techniques

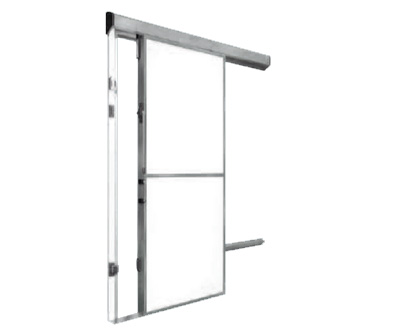

SLIDING DOORS - Mod. 480TN

Caractéristiques techniques
SLIDING DOORS- Mod. 480 LWT

Caractéristiques techniques

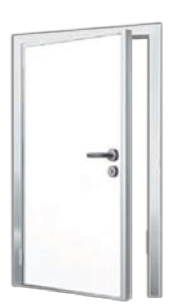

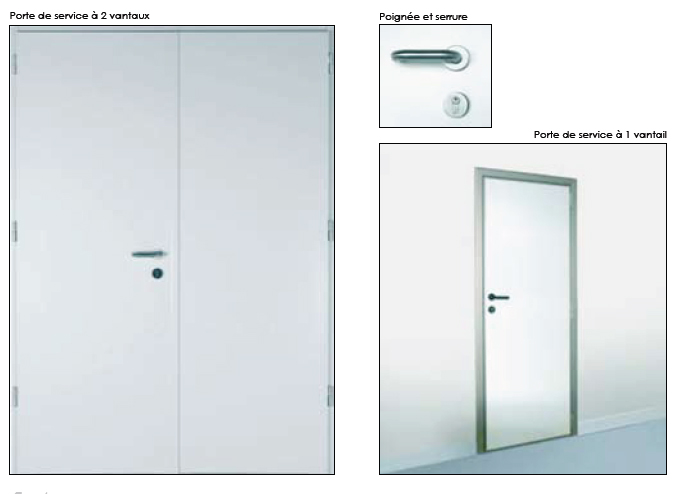

SERVICE DOORS

DESCRIPTION

The service door is intended for technical rooms, offices, and sanitary facilities.

DETAILS

It consists of:

An aluminum frame made up of a frame and a counterframe mounted on panels with variable thickness from 60 to 100 mm. For 40 mm thick panels, an additional 20 mm aluminum spacer will be added (Detail A).
A door leaf filled with injected polyurethane foam insulation of 40 mm thickness with pre-coated steel sheet facings.
Aluminum hinges.
A handle made of plastic material and a recessed key lock.

STANDARD EXECUTION

Clear Opening L. x H. (mm)	Width L. (mm)	Height H. (mm)
Single-leaf service door	700, 800, 900, 1000, 1100, 1200	1800, 2000, 2100, 2200, 2300, 2400
Double-leaf service door	1400, 1500, 1600, 1700, 1800, 1900, 2000	2200, 2300, 2400

DIFFERENT INSTALLATION TYPES:

On wall with PVC frame.
On sandwich panels with thickness ranging from 40 to 100 mm.

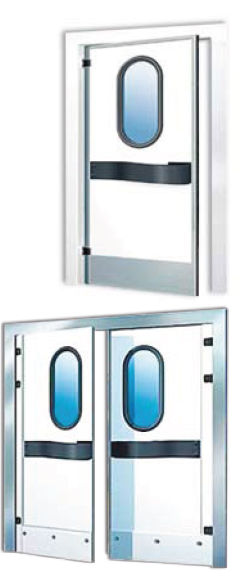

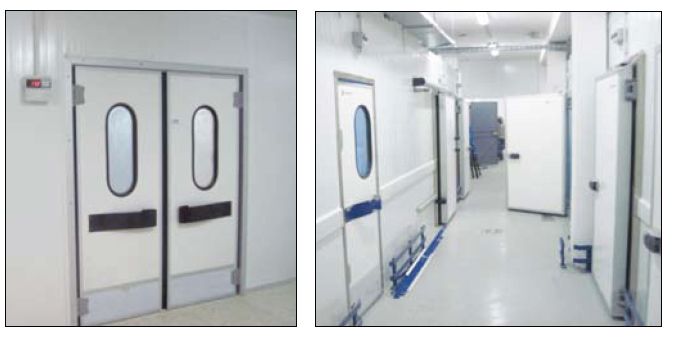

SWING DOORS

DESCRIPTION

The swing door is intended for separating processing rooms with heavy traffic of people or carts.

DETAILS

It consists of:

An aluminum frame made of a C-shaped frame mounted on panels with 60 and 80 mm thickness.
One or two leaves filled with injected polyurethane foam insulation of 40 mm thickness.
Aluminum hinges with 90° door stop, a lateral sealing gasket, and a porthole with rubber frame.

STANDARD EXECUTION

Clear Opening L. x H. (mm)	Width L. (mm)	Height H. (mm)
Single-leaf swing door	800, 900, 1000, 1100, 1200	1800, 2000, 2100, 2200, 2300, 2400
Double-leaf swing door	1400, 1500, 1600, 1700, 1800, 1900, 2000	2200, 2300, 2400

OPTIONS

Airplane-wing style handles in PVC.
Stainless steel lower protections on the door leaf.

DIFFERENT INSTALLATION TYPES:

On wall with PVC frame.
On sandwich panels with thickness of 60 and 80 mm.
